PicoScope 5000E Series - Our Precision Oscilloscopes

PicoScope 5000E SeriesWorld-first 4 channel 16-bit USB oscilloscopes and MSOs

Precision where you need it.

Speed when it matters.

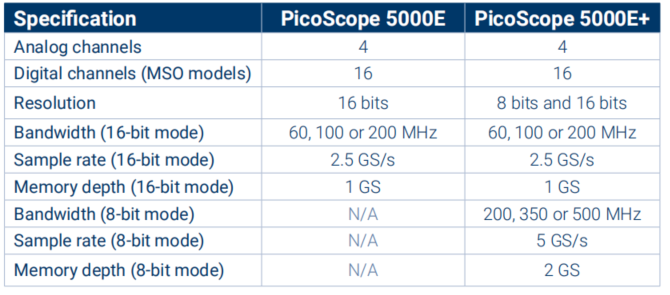

Features:

16-bit mode with up to 200 MHz bandwidth, 2.5 GS/s sampling, 1 GS capture memory

8-bit mode with up to 500 MHz bandwidth, 5 GS/s sampling, 2 GS capture memory

22 uV RMS noise floor at 20 MHz to measure low-level signals other oscilloscopes lose in their own noise

> 73 dB SFDR and exceptional bandwidth flatness to trust every measurement, from DC to full bandwidth

The PicoScope 5000E Series is the first four-channel oscilloscope to offer 16-bit resolution with a low noise floor and high dynamic range to measure low-level signals other oscilloscopes miss.

16-bit resolution

With 16-bit resolution on each of its 4 channels, the PicoScope 5000E Series offers a high-performance ADC to capture low-amplitude signals, power supply ripple, distortion and other subtle millivolt transitions. This allows engineers to achieve high measurement precision for analog systems.

PicoScope 5000E Series oscilloscope kit contents:

• PicoScope 5000E Series oscilloscope

• TA532 USB-C to USB-C cable, 1.8 m

• TA534 USB-A to USB-C cable, 0.9 m

• TA136 MSO cable and 2 x TA139 set of MSO clips (MSO models only)

• PS017 USB-C power supply, with UK, EU, US and AUS plugtops

• Probe-to-BNC adaptor (TA537 5 mm adaptor included with 60, 100, 200 and 350 MHz oscilloscopes, or a TA563 3.5 mm adaptor included with the 500 MHz oscilloscope)

• User's Guide

Probes (if selected when ordering)

You will receive four probes for the scope model you choose:

5 mm probes:

• TA375, 100 MHz, 1:1/10:1 probe (for 5462E, 5462E MSO, 5463E, 5463E MSO)

• TA386, 200 MHz, 1:1/10:1 probe (for 5462E+, 5462E+ MSO, 5464E, 5464E MSO)

• TA536, 350 MHz, 1:1/10:1 probe (for 5463E+ and 5463E+ MSO)

3.5 mm probe:

• P1053, 500 MHz, 10:1 passive probe (for 5464E+ and 5464E+ MSO)
